AC EV Charger Piles
Back to previous pageOverview
AC EV charger piles are divided into wall-mounted and floor-standing types. It is used for AC power in electric vehicles and is commonly used in residential areas, shopping malls, office space and underground parking lots.
AC EV Charger Piles

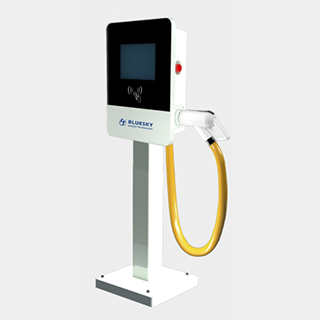

Referential Image
Referential Image
Main Features
| Structure appearance | |||
|---|---|---|---|
| Shell material | Galvanized sheet | ||
| Size | Floor type:300*1500*150(Wide * high * thick) Wall-mounted:300*420*150(Wide * high * thick) |
||
| Installation method/td> | Floor-mounted installation | ||
| Route way | Under the line, under the qualifying | ||
| Charging interface | 1 piece（National standard GB/T20234.3-2015） | ||
| Cable length | 5m | ||
| Environmental indicators | |||
| Applicable scene | Indoor / outdoor | ||
| Operating temperature | -20℃~+50℃ | ||
| Storage temperature | -40℃~+70℃ | ||
| Operating temperature | 5~95% | ||
| Operating temperature | 5~95% | ||
| Altitude | <2000m | ||
| Degree of protection | IP54 | ||
| Cooling method | Strong exhaust air cooling | ||
| Electrical indicators | |||
| Input voltage | 380Vac±15% | ||
| Output voltage | 380Vac±15% | ||
| Rated current | 32A | ||
| Rated power | 22KW | ||
| Frequency Range | 50±1Hz | ||
| Features | |||
| Safety indicators | Short circuit, over voltage, over current, leakage, over temperature, lightning protection. | ||
| Protective measures | Moisture, mold, salt spray, dust, water, sun, wind, anti-theft and so on | ||
| Fractional fees | Peak sub-billing and charging service charges, consumer transparency | ||
| Human-computer interaction: LED indicator + touch screen | |||
| Payment method: credit card payment | |||
| Functional indicators | Charging Billing: AC power meter | ||
| Communication Interface:Etherbet/RS485 | |||
| Other: Emergency stop button, remote upgrade, background monitoring | |||
