LPG Turbine Pump LWB-150
Back to previous page
Coupling Drive
Overview
LWB-150 LPG Turbine Pump,for high differential pressure application using,for underground and aboveground tank application. Advantage A cost effective alternative to submersible designs. Meeting multiple demands for LPG application. Whether a low or high flow rate with a high differential pressure, by underground and aboveground tank application , LWB-150 pump is an idea pump for two dual hose LPG dispensers. Continuous duty design. Serviceability is simple and cost effective.
Other Models

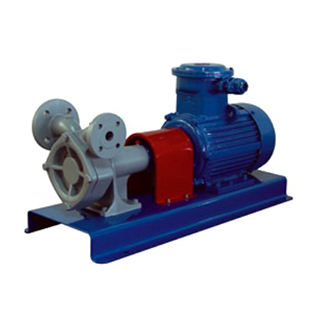

LWB-150 LPG Turbine Pump
Aplication
| 1. Autogas Dispensing |
| 2. Cylinder Filling |
| 3. Vaporizer Feed |
| 4. Bulk Transfer |
Technical Specification
| Inlet | 1½" |
| Outlet | 1" |
| Speed | 60Hz 3450 RPM or 50Hz 2880 RPM |
| Max. Working Pressure | 27.6 bar (400PSI) |
| Max. Differential Pressure | 20 bar (290PSI) |
| Max./Min. Temperature | -32ºC ~ 107ºC |
| Power of Motor | 5.5 Kw |
Package Data
| Model | Pump Only | Pump With Motor |
| Size: | 37.5x 30x 40cm | |
| Net Weight: | 29Kg. | 120Kg. |
| Gross Eight | 35Kg. | 140Kg. |
| Package | 1pc/ Wooden Case | |
