LPG Rotary Pump
Back to previous page

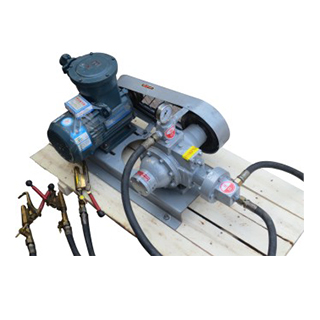

V-Belt Drive
Technical Performances:
LPG ROTARY pump is commonly found in the LPG industry because its high pumping efficiency, long life, ease of maintenance. Its housing and rotors are constructed of ductile iron for high strength. The vanes are self-adjusting for wear. It can handle small amounts of vapor formed at the pump suction. V-belt and coupling drive mounting are available for choice.
Other Models
Referencial Image

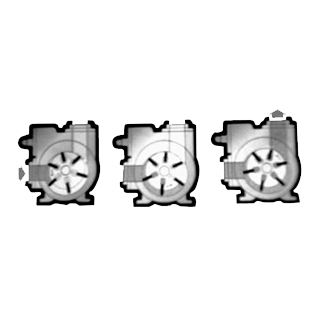

Structure
Aplication
| Cylinder Filling |
| Loading/ Unloading of bulk and transport trailers |
| Automotive Fillings |
| Vaporized Feed Pumps |
Model and Specification
| SN | Model | Speed (n) | Flow Rate (m³) | Working Pressure | Model of Motor | Power of Motor | Inlet (INCH) | Outlet (INCH) |
|---|---|---|---|---|---|---|---|---|
| 1 | YQB2-5 | 600 | 2 | 1.6 | YB90m-4 | 1.5 | 1 | 1 |
| 2 | YQB5-5 | 780 | 5 | 1.6 | YB112m-4 | 3 | 1 | 1 |
| 3 | YQB10-5 | 600 | 10 | 1.6 | YB112m-4 | 4 | 2 | 2 |
| 4 | YQB15-5 | 780 | 15 | 1.6 | YB1322m-4 | 5.5 | 2 | 2 |
| 5 | YQB25-5 | 600 | 25 | 1.6 | YB160m-4 | 11 | 3 | 3 |
| 6 | YQB35-5 | 780 | 35 | 1.6 | YB160m-4 | 11 | 3 | 3 |
