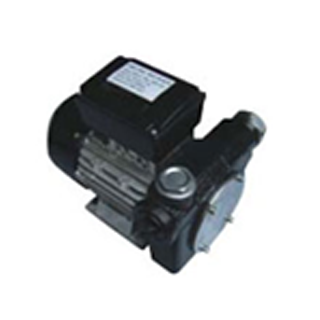

DYB-40
Overview
DYB Series self-priming rotary vane pumps feature a mechanical seal that guarantees constant reliability, even in low temperatures.cast-iron pump casing, treated against corrosion and paint-finished.Vane pump with steel rotor. Bypass valve built into pump casing.In-built 100-micron filter, easily accessible for cleaning.Induction motor with aluminum casing. Grade of protection: IP55.Continuous running. 1"hreaded joints on pump casing.
Technical Performance
| Mode | Flow rate | Max. Pressure | Power | Bypass Valve | Strainer |
|---|---|---|---|---|---|
| DYB-40 | 20-40L/min | 3Bar | DC24V DC12V | Yes | No |
| DYB-60 | 20-60L/min | 3Bar | AC220V±10% 50Hz | Yes | Yes |
| DYB-80 | 20-80L/min | 3Bar | AC110V±10% 50Hz | Yes | Yes |
Others Models
DYB-60
DYB-80
