LT-W 112 (1pump-1nozzle-2display-1keyboard)
Technical performances:
Working Ambient:
- Adapt temperature: -40℃~+55℃
- Relative humidity: ≤95%
- Air pressure: 86~106kPa
Technical performances:
Power:
- Voltage: AC220V±20%√ AC380V±20% AC110V±20%
- Frequency: (50±1)Hz √ (60±1)Hz
- Unit price range: 0~9999, 0~999999 (changeable)
- Single range:1~9999.99,1~999999.99 (changeable)
- Accumulative range: 0~9999999999.99
- Electronic Calibration.
- Voice and printer (option).
- Fueling times limit function.
- Function of locking pump.
- Stop fueling by integer sale.
- Can set the decimal point for the display, so can be used in many country with different currency rate.
- Leaves the communication ports, so it can communicate with the gas station management system.
Technical performances:

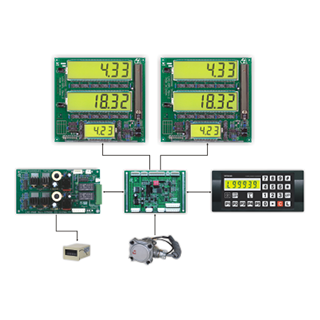

| Pump-nozzle-display | Main- board | Power- board | Display- board | Key- board | Pulser | Counter |
|---|---|---|---|---|---|---|
| 1-1-2 | 1 | 1 | 2 | 1 | 1 | 1 |
| 1-2-2 | 1 | 1 | 2 | 2 | 2 | 2 |
| 2-2-4 | 1 | 1 | 4 | 2 | 2 | 2 |
Dimensions
Setting Dimensions：280*200
