RT-M Fuel Dispenser
Back to previous page
Referential image
The main function
- Electronic Calibration.
- Voice and printer (option).
- Fueling times limit function.
- Function of locking pump.
- Stop fueling by integer sale.
- Can set the decimal point for the display, so can be used in many country with different currency rate.
- Leaves the communication ports, so it can communicate with the gas station management system.
- Can communicate with the IC card reader.

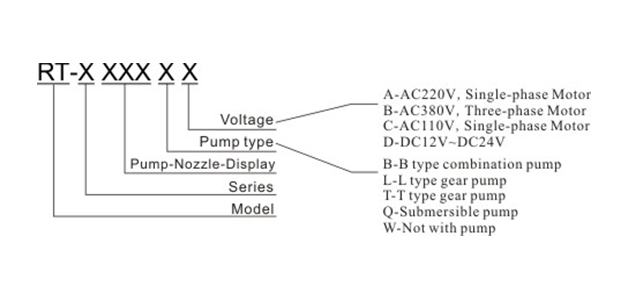

The product model definition
Referential image
Main Technical Parameters
| Accuracy | ±0.30% |
| Repeating Accuracy | ≤0.10% |
| Flow range | (5~55) L/min |
| Noise | ≤70dB(A class) |
| Unit price range | 0~9999, 0~999999 (changeable) |
| Single range | 1~9999.99, 1~999999.99 (changeable) |
| Acumulative range | 0~9999999999.99 |
| Input hose diameter | 38mm |
| Oil hose diameter | 19mm |
| Ambient Temperature | -35℃~+55℃ |
| Humidity | ≤95% |
| Atmospheric Pressure | 86kPa~106kPa |
| Power(optional) | DC12V~DC24V or AC220V±20% |

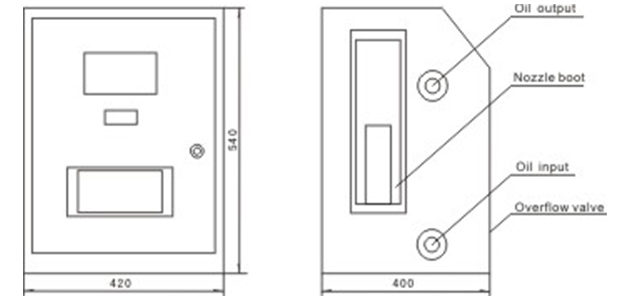

External Dimension
External Dimension: 420×400×540

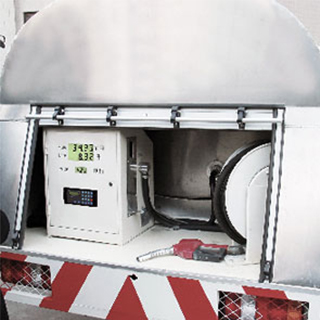

Application
Referential image
