RT-C Fuel Dispenser
Back to previous page
Referential image
The main function
- Electronic Calibration.
- Voice and printer (option).
- Fueling times limit function.
- Function of locking pump.
- Stop fueling by integer sale.
- Can set the decimal point for the display, so can be used in many country with different currency rate.
- Leaves the communication ports, so it can communicate with the gas station management system.
- Can communicate with the IC card reader.

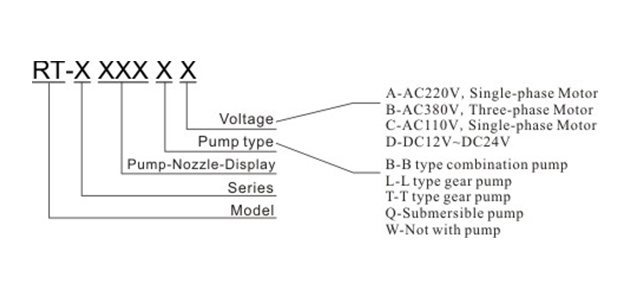

The product model definition
Referential image
Main Technical Parameters
| Accuracy | ±0.30% |
| Repeating Accuracy | ≤0.10% |
| Flow range | (5~55) L/min |
| Maximum head | 5m |
| Inlet Vacuum | ≥54kPa |
| Outlet Vacuum | ≤0.3MPa |
| Work pressure | ＜300 kPa |
| Noise | ≤70dB(A class) |
| Unit price range | 0~9999, 0~999999 (changeable) |
| Single range | 1~9999.99, 1~999999.99 (changeable) |
| Accumulative range | 0~9999999999.99 |
| Input hose diameter | 38mm |
| Oil hose diameter | 19mm |
| Explosin-Proof motor power | 750W(or 1000W) |
| Ambient Temperature | -35℃~+55℃ |
| Humidity | ≤95% |
| Atmospheric Pressure | 86kPa~106kPa |
| Power(optional) | AC110V±20%, AC220V±20% , AC380V±20% (50Hz) |
External Dimension
RT-E 484 (4Pump-8Nozzle-4Display)
External Dimension: 2010*680*2150mm (Length*Thickness*Height)
Another Features
1)RT-E484 model is 8 nozzle
The nozzle number in A side is 1、3、5、7
The nozzle number in B side is 2、4、6、8
1、2 are same product 3、4 are same product
5、6 are same product 7、8 are same product

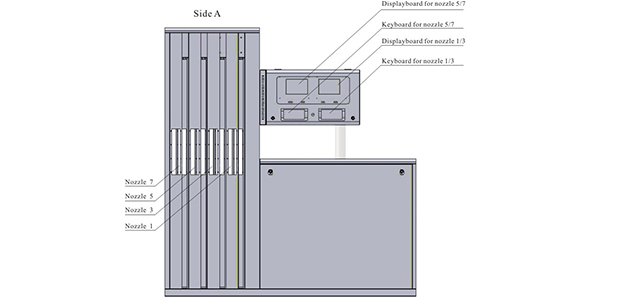

2)The specification for the displays in one side
Nozzle 1 and 3 can use same display board and keyboard.
Nozzle 5 and 7 also can use same display board and keyboard.
